ANTIC'S MODE 3

A special character mode

By KARL WIEGERS

SYNOPSIS
Here's how to modify Atari's text mode to display video lowercase letters with real descenders (g, j, p, and y), and subscripts.  The programs run on all Atari computers.  Please note: the ANTIC referred to in this article is Atari's LSI chip, not your favorite magazine.  Newer readers now know where our name came from.  Antic Disk Subscribers: Run "D:HIDDEN.BAS"

With the implementation of the new Operating System in the XL series of Atari computers, all of Atari's graphics and text modes but one are readily available to the user from BASIC.  This is ANTIC Mode 3, a text mode that's similar to Graphics 0, but that allows special modifications to the character set.
   A few of the concepts and terms used in this article may be unfamiliar to you. The display list is a set of instructions used by the ANTIC chip, the special graphics processor that constructs the screen display.  See "Display Lists Simplified" (Antic, February/March 1983) for a detailed explanation of display lists and how they work.
   A scan line is a single horizontal line traced by the electron beam on your television screen.  Every 30th of a second, 525 scan lines are produced, forming a single screen image.
   A mode line in Atari terminology is a group of scan lines (from 1 to 16, depending on the graphics mode) used as a unit by the display list.  For instance, in Graphics 0, eight scan lines make up one mode line.  See the Graphics Chart ("Unlocking the 56 Graphics Modes") in this issue for the number of scan lines required by different text and graphics modes.
   Character graphics refers to the method normally used by the Atari Operating System to display alphanumeric characters on the screen.  Read "Character Graphics" (Antic, February 1984) for further information.
   Each character is composed of dots (pixels) in an 8-by-8 matrix.  The dot pattern for each character is stored in eight consecutive bytes in ROM.  The 128 characters that are the Atari character set occupy (128 x 8) 1024 bytes.
   Here's a short program that will print out the Internal Character set (the ATASCII set).
   The order in which the set is printed is the same order in which the computer's Read Only Memory stores the set.

10 PRINT "NUMBER",,"CHARACTER"
20 FOR I=0 TO 63:PRINT
   I,,CHR$(I+32):NEXT I
30 FOR I=64 TO 90:PRINT
   I,,CHR$(I-64):NEXT I
35 FOR I=91 TO 95:PRINT
   I,,CHR$(27);CHR$(I-64):NEXT I
40 FOR I=96 To 124: PRINT
   I,,CHR$(I):NEXT I
50 FOR I=125 TO 127:PRINT
   I,,CHR$(27);CHR$(I):NEXT I

In ANTIC 3, each mode line is ten scan lines high.  Each character is still represented by eight bytes, and two scan lines normally appear as blanks below the character.  Second, the last 32 characters in the set (lower case letters plus six special important characters) are displayed differently from the rest.  The first two bytes of these 32 characters are displayed at the bottom of the character, and the two blank lines appear at the top.  This allows us to redefine some of these characters to have lower-case descenders (the "tails" of letters, g, j, p, q, y extend two dots below the bottom of other letters).

STEP BY STEP
First, modify the display list.  Each mode line of ANTIC 3 has ten scan lines.  Our ANTIC 3 screen will have 20 lines of text on the screen.  The program in Listing 1 sets up the ANTIC 3 display list.
   When you RUN Listing 1, the screen will flash and a rectangular cursor will appear.  The Operating System is set up for ANTIC 2, so it tries to display 24 lines.  Since we've set up our new display list to show 30 lines, the bottom four lines of the display are invisible.  Press [RESET] to return to the normal display before rerunning the program.
   Type some letters.  Capital letters, numbers and graphic symbols look fine.  Now type some lowercase letters.  All the tall lowercase letters (b, d, f, h, i, j, k, 1, t) are cut off; the tops of the letters are displayed as dots at the bottom of the letters.  Here's why:
   Figure 1A shows the dot pattern for a normal uppercase 'Y' in ANTIC Mode 2. Figure 1B shows the 'Y' in ANTIC 3. The two extra scan lines appear as blank lines below the character.  Figure 2A shows the pattern for a lowercase 't', and 2B shows its ANTIC 3 representation.  Note that dots in the top two rows of the normal character have been moved to the bottom of the character in ANTIC 3. This happens with all characters with ATASCII codes between 96 and 127.
   We can't use the standard character set in ANTIC 3 because of this.  One possible solution is to redraw each character one line lower within its 8-by-10 matrix.  The entire set must be copied into RAM first.

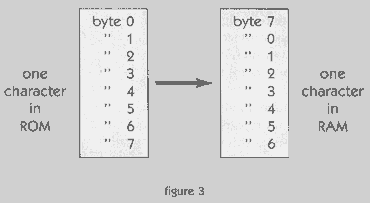

   Figure 3 illustrates the necessary steps.  Shift the eight bytes in the character down by one, and move the last byte to the top of the character.  When ANTIC 3 displays the character, it displays the first two bytes last, so the vertically shifted characters will look fine.  Listing 2 contains a machine-language subroutine that transfers the character set to RAM and performs the modification quickly.  Merge Listing 2 with Listing 1 to combine the ANTIC 3 display list with the shifted characters.
   Here's how to merge the two listings:

1. LOAD or type in Listing 1 and LIST it to disk or cassette.
2. Verify with TYPO.
2. LOAD or type in Listing 2.
3. Use the ENTER command to load (and merge) Listing 1.
4. Use SAVE to store the combined program.
5. If you don't see 'READY' after running the combined program, press [RESET] and RUN again.

   We're now ready to redefine some characters to give the lowercase descenders mentioned earlier.  We can repair the comma and the semicolon at the same time.
   Make a less squashed-looking 'y' by changing it to the dot pattern in figures 4A and 4B.  This illustrates lowercase descenders; ANTIC 3 gives such characters a more pleasing appearance than does the usual text mode.
   Listing 3 gives descenders to all the appropriate characters, and repairs the comma and semicolon.  Merge this with the program from Listings 1 and 2. You now have a complete, working text display for ANTIC Mode 3.

A USEFUL APPLICATION
If we wish to write chemical or mathematical formulae, we need to use symbols as subscripts.  Let's use ANTIC 3's special display features to create some subscript number characters,
   The ATASCII character set has six rarely used characters whose codes are: 96 ([CTRL][.]; 123 ([CTRL][;]; 124 ([SHIFT][=]); 125; 126; and 127.  In this example, we'll replace character 96 with the dot pattern for a subscript '2', 123 with subscript '3', and 124 with subscript '4' (Figures 5A and 5B).  Type in Listing 4 and merge with your evolving program.  Press [RESET], and RUN the program.  Now, whenever you press [CTRL][-], you should get a subscript '2', and so on.  Try writing the chemical formula for potassium phosphate with these keystrokes:
   [K] [CTRL][;] [P] [O] [SHIFT][=] See if you can type other formulae, like silver carbonate, AG2CO3; sodium acetate, NaC2H3O2; aluminum sulfate, Al2(SO4)3.  This may be the first chemistry you've seen coming out of your Atari computer, but it's just one application of ANTIC Mode 3. (If you come up with any other interesting uses for this mode, send then to Antic.  If they're good, we'll publish them.)
   As always, this is just a start.  ANTIC 3 can be used for super/subscripts, footnotes, and vowel markings for foreign languages.  Special character sets can be printed out using screen dump programs.



Karl E. Wiegers, Ph.D., is a research chemist for Eastman Kodak and an Atari hobbyist.  He writes for a number of computer publications.
